Technical data Ford Capri Mk I - RS3100 (1973-1974)

engine

six cylinder vee formation at 60 degrees

crankshaft

Four main bearings

Capacity

3091 cc (188.6 cu in)

bore x stroke

95,19 x 72,44 mm (3.75in x 2.85in)

compression ratio

9,0 : 1

maximum power

148 bhp @ 5000 rpm » Capri Post Meeting vom 24. - 26. Juni 2011

maximum torque

(mkp - U/min) 187lb.ft@3000 rpm

valve gear

overhead valves; push rods and rockers.

Fuel system / carburation

Weber 38 EGAS twin-choke carburettor

type of fuel

gas super

fuel capacity

58 liters = UK Gal. 12.758 (102,05 pint)

Ford Capri MkI
First generation

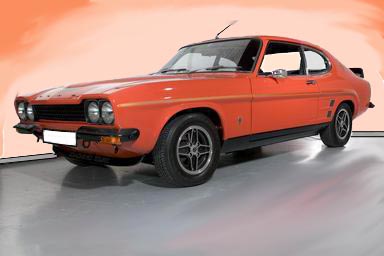

Ford Capri MkI RS3100

lubrication

force-feed lubrication system with oil filter in the main oil line

oil capacity

4.25 liters - with filter 5 liters (0.934 / 1.099 UK Gal.)

cooling system capacity

2,045 UK Gal. (16,364 pint) = 9,3 liters including heater

car battery

12 V - 55 AH

generator

dynamo / 14 V - 35 A

gearbox

four-speed synchromesh transmission:
I. 3,16 - II. 1,94 - III. 1,41 - IV. 1,0 - R. 3,35
optional limited slip differential

final drive ratio

3.09

powertrain

one-piece drive shaft

construction

steel monocoque

front axle

independent coil springs with telescopic dampers, macPherson struts and anti-roll bar.

rear axle

live axle half elliptic leaf springs, twin radius arms and telescopic dampers.

steering system

Rack and pinion steering linkage, safety steering wheel.
Rate of transmission 17,7: 1

turning circle

33.62ft (10.24 m)

tyres

radial-ply 185/70 x 13

wheels

RS 2600 Alu weels 6 x 13in

brake system

Hydraulic dual circuit brake system. Ventilated Disc brakes at the front and drum brakes at the rear. Mechanical hand brake on the rear wheels.
Brakes Standard Servo.
Disc: 9.606in x 0,503in = 244 mm x 12,8 mm
Drum x Width: 9in x 2,106in = 228,6 mm x 53,5 mm
brake-shoe:
Width x gage x Length: 1,73in x 0,188in x 7,086in = 44 x 4,8 x 180 mm

length x width x height

164.8 x 64.8 x 49.2in = 4186 x 1646 x 1263 mm

Front Track / Rear Track

54,21in (1377mm) / 53,18in (1351mm) Wheelbase 100,8in (2559mm)

Luggage boot

ca. 355 liters

curb weigth

2314 pound (1050 kg)

gross weight

3229 pound (1465 kg)

0 - 62mph

7,3 sec.

maximum speed

124,89 mph = 201 km/h

fuel consumption

20 (mpg) = 100 km / 14,1 litre
