Technical data Ford Capri Mk II 2800 USA (1975-1977)

Engine (C - HC- PRN)

six cylinder vee formation at 60 degrees

Crankshaft

four main bearings

Capacity

2792 cc (170,8 cu in)

Bore x Stroke

93,0 x 68,5 mm (3,66in x 2,70in)

Compression ratio

8,2 : 1

Maximum power

109 bhp @ 4800 rpm (110 bhp from 1977)

Maximum torque

(mkp - U/min) 146lb.ft@3000 rpm (148lb.ft@2400 rpm from 1977)

Valve gear

overhead valves; push rods and rockers.

Fuel system / carburation

Single Motorcraft 2150 twin-barell carburettor

Type of fuel

gas super

Fuel capacity

58 liters = UK Gal. 15,321 (102,058 pint)

Ford Capri MkII

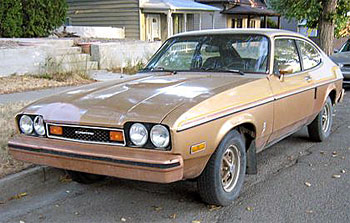

Mercury 2.8 Liter V6 1976

Ford Capri MkII Mercury 2.8 1976

Lubrication

force-feed lubrication system with oil filter in the main oil line

Oil capacity

4,0 liters - with filter 4,25 liters (0,879 / 1,122 UK Gal.) (autom. ca. 6,5)

Cooling system capacity

1,715 UK Gal. (13,725 pint) = 7,8 liters including heater

Car battery

12 V - 44 Ah (autom. 55 Ah)

Generator

dynamo / 14 V - 55A

Transmission / Gear ratios

four-speed manuel gearbox, fully synchronized:
1st. 3,65 - 2nd 1,97 - 3rd 1,37 - 4th 1,0 - rev. 3,66
Optional three-speed automatic (planetary gear)
Automatic: Ist. 2,474 - 2nd. 1,474 - 3rd 1,0 - rev 2,111

Final drive ratio

3,09 (or 3,22 in California)

Powertrain

one-piece drive shaft

Construction

steel monocoque

Front axle

independent coil springs with telescopic dampers, macPherson struts and anti-roll bar.

Rear axle

live axle half elliptic leaf springs, twin radius arms and telescopic dampers.

Steering system

Rack and pinion steering linkage, safety steering wheel.
Rate of transmission 17,7: 1

Turning circle

35,43ft (10.8 m)

Tyres

cross ply 185/70/13

Wheels

steel disc weels 5 x 13in - optional alloy wheels

Brake system

Hydraulic dual circuit brake system. Disc brakes at the front and drum brakes at the rear. Mechanical hand brake on the rear wheels.
Brakes standart servo
Disc: 9,606in x 0,503in = 244 mm x 12,8 mm
Drum x Width: 8in x 1,496in = 228,6 mm x 53,5 mm
brake-shoe: Width x gage x Length: 44 x 4,8 x 180 mm

Length x Width x Height

174,01 x 66,85 x 51,10in = 4440 x 1698 x 1298 mm

Front track / Rear track

53,26in (1353mm) / 54,48in (1384mm) Wheelbase: 100,8in (2559mm)

Luggage boot

ca. 260 liters / 540 liters

Curb weigth

2685 pound (1218 kg)

Gross weight

3218 pound (1460 kg)

0 - 62mph

10,5 secs (Automatic 12,5 secs)

Maximum speed

108 mph = 174 km/h

Fuel consumption

28,2 (mpg) = 100 km / 10,0 litre (Automatic 10,5 litre)
